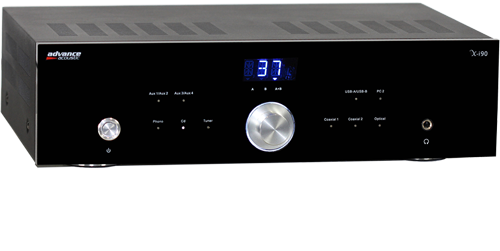

X-i90

The integrated amplifier X-i90 is the second model of the new X-Line range. Its sober and pure cosmetics gives it a luxurious and timeless touch.
Technically new and decidedly audiophile design, the integrated amplifier X-i90 will delight for budget conscious music lovers wanting to maximise their investment.
Equipped with eight power transistors, the integrated amplifier X-i90 delivers a power of 2 x 90 watts into 8 Ohms and its High Bias "Class'A" function will allow it to supply easily most of the loudspeakers found on the market.
Offering a DAC, and various analog inputs, the X-i90 will enable to meet the consumers demand.

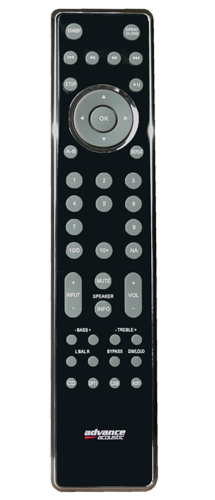

Its complete remote control device will make it easier to use.

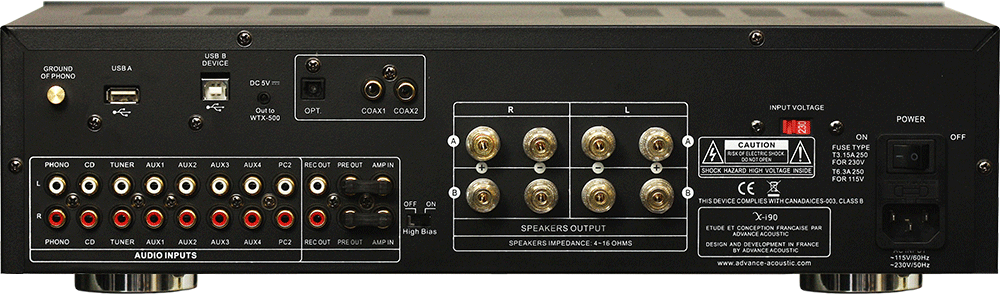

ANALOG INPUTS :

1 MM phono input

1 CD input
1 Tuner input
4 Auxiliairies inputs
1 PC2 Analog input
1 Record output
Amp –Préamp can be disconnected

DIGITAL INPUTS :

2 Coaxial inputs
1 Optical input
1 USB B for Mac and PC input
1 USB A for USB keys with MP3 files

OUTPUTS :

2 Pairs of loudspeakers
1 headphones plug
DC output : 5 Volts for WTX 500

ADJUSTMENT :

- Volume
- Balance
- Loudness
- Bass
- Trebble
- Bypass
- Hi Bias switch

Specifications:

Power output 8 Ω : 2 X 90 W RMS
Power output 4 Ω : 2 X 120 W RMS
Frequency response : 10 Hz – 35 kHz
distortion < 0.1%
Signal/Noise Ratio ≤ 90 dB
Channel separation ≥ 70 dB
Input impedance : 47 kΩ
Input phono impedance : 47 kΩ
Input level (Cd/Aux) < 300 mV
Input level amplifier < 1.1V
Input phono level : 2.5 mV
AC input : 115V/230 V
Power consumption max < 370 W

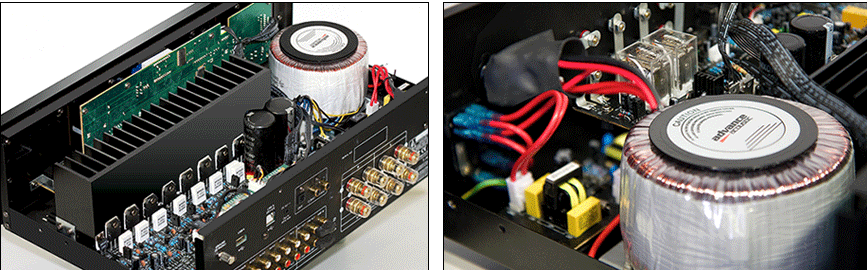

Toroïdal transformer
Converter : Cirrus Logic Cs 8416
Converter USB A : A165174
Converter USB B : Burr Brown Pcm 2900 (Texas)
Dimensions : H.12 cm x W.43 cm x D.32 cm
Net Weight : 8 kg
